Portable Winch For Sale | Edmonton, Spruce Grove

Winches

Below is our selection Portable Capstan Winches. These winch models are powered by Honda engines.>/p>

*** May not be exactly as illustrated ***

Can$1,379.99

*** Plus PDI ***

*** Price subject to change without notice ***

Availability	In Stock 1 Edmonton In Stock 1 Spruce Grove

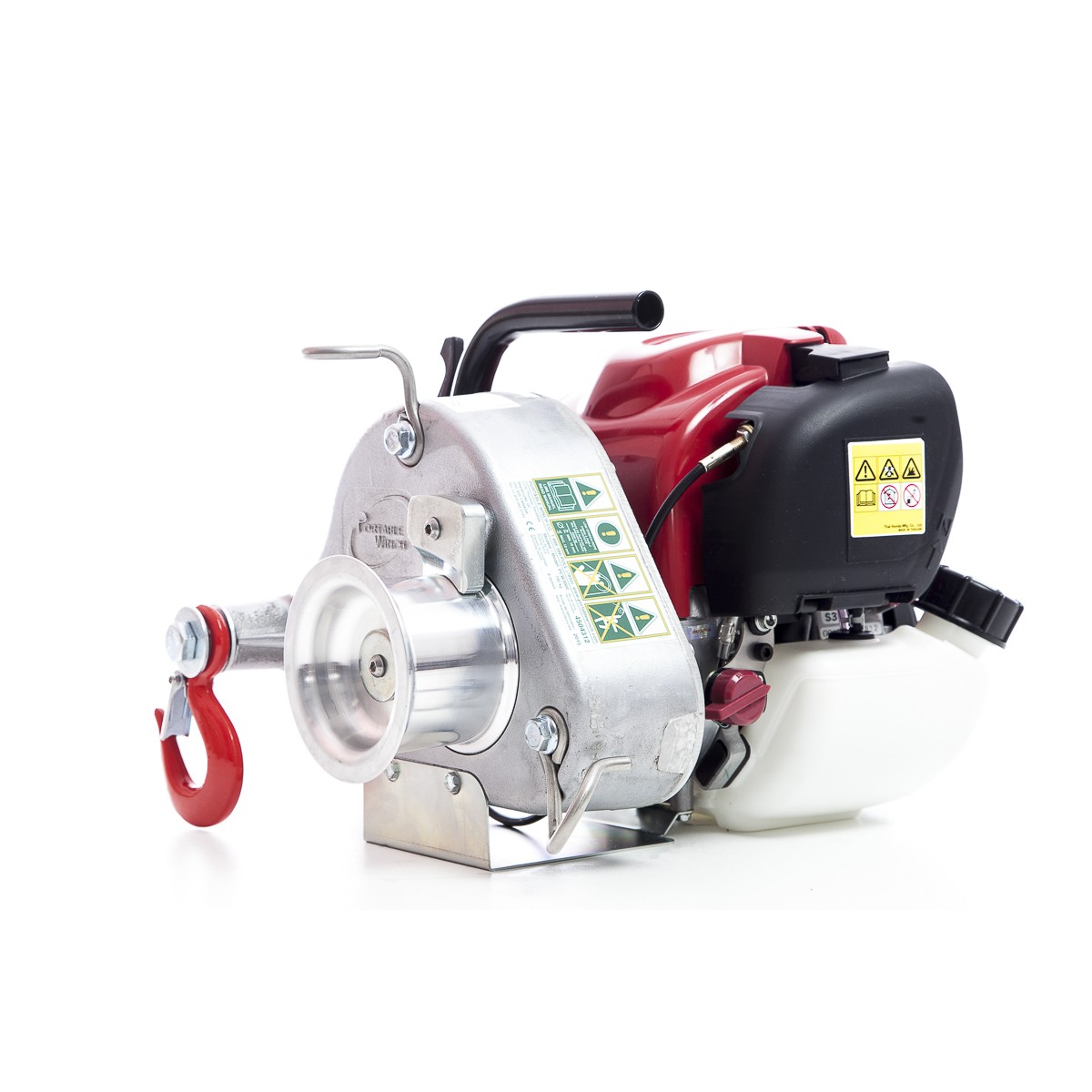

Model	PCW3000
CAPSTAN DRUMS	Maximum pulling force installed drum: 700 kg
CAPSTAN DRUMS	Installed : 76 mm Optional : N/A
SPEED	76 mm drum : 10 m/min
ENGINE / GEARBOX	Engine/Motor : Honda 4-stroke GX-35 cc - all positions Gear box and gears : Aluminium alloy gear box. Heat treated 3 stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication. Gear ratio : 200:1 Brake : Anti-reversing needle bearing Clutch : N/A - Direct Drive Drum turns with engine idling : Yes Work cycle : Continuous

*** May not be exactly as illustrated ***

Can$2,129.99

*** Plus PDI ***

*** Price subject to change without notice ***

Availability	Call Edmonton Call Spruce Grove

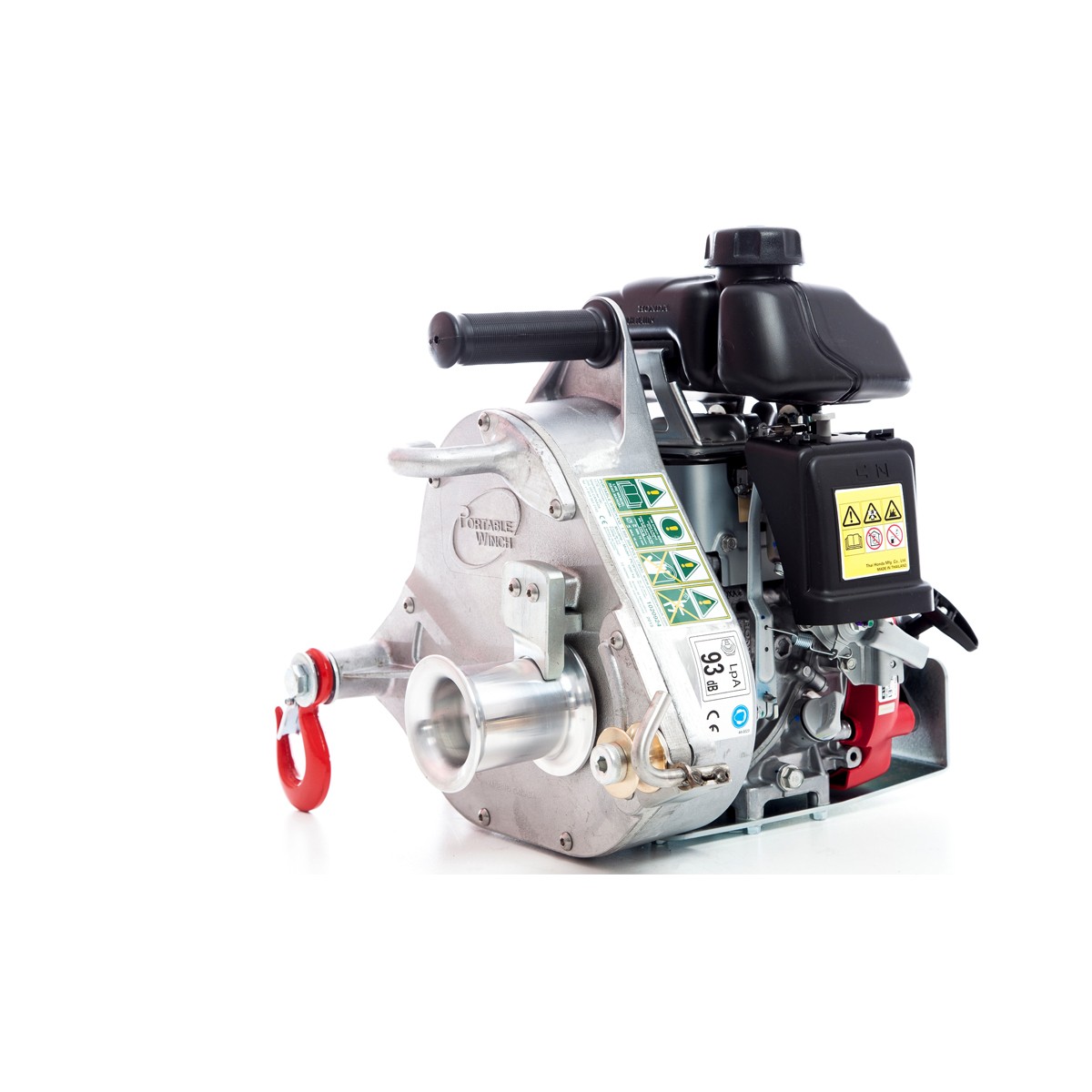

Model	PCW5000
CAPACITY	Maximum pulling force installed drum: 1000 kg Maximum pulling force optional drum: 700 kg
CAPSTAN DRUMS	Installed : 57 mm Optional : 85 mm
SPEED	57 mm drum : 12 m/min 85 mm drum : 18 m/min
ENGINE / GEAR BOX	Engine/Motor : Honda 4-stroke GXH-50 cc Gear box and gears : Aluminium alloy gear box. Heat treated 3 stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication. Gear ratio : 110:1 Brake : Anti-reversing needle bearing Clutch : N/A - Direct Drive Drum turns with engine idling : Yes Work cycle : Continuous

*** May not be exactly as illustrated ***

Can$2,349.99

*** Plus PDI ***

*** Price subject to change without notice ***

Availability	Call Edmonton Call Spruce Grove
Model	PCW5000-HS
CAPACITY	Maximum pulling force installed drum: 350 kg Maximum pulling force optional drum: 500 kg
CAPSTAN DRUMS	Installed : 85 mm Optional : 57 mm
SPEED	57 mm drum : 24 m/min 85 mm drum : 36 m/min
ENGINE / GEAR BOX	Engine/Motor : Honda 4-stroke GXH-50 cc Gear box and gears : Aluminium alloy gear box. Heat treated 3 stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication. Gear ratio : 53:1 Brake : Anti-reversing needle bearing Clutch : N/A - Direct Drive Drum turns with engine idling : Yes Work cycle : Continuous
